Description

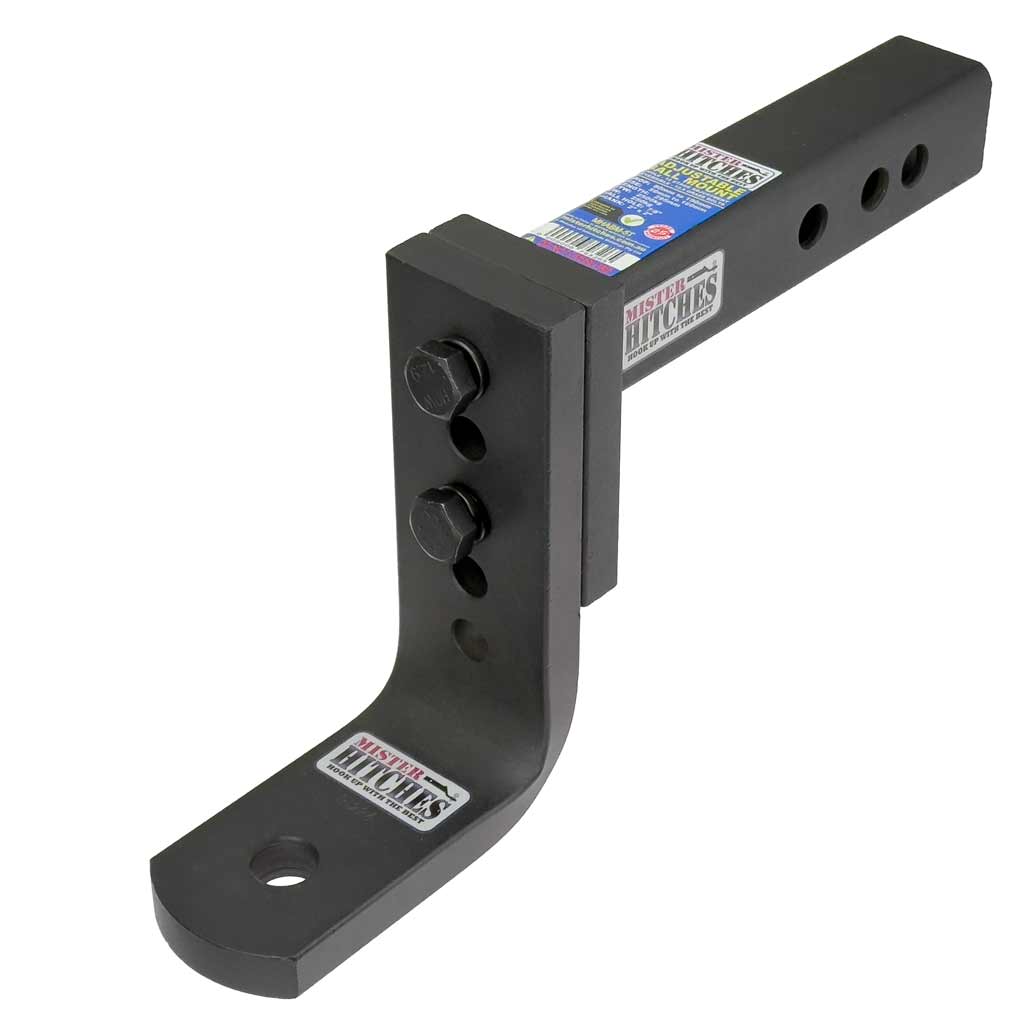

This popular hitch has now been improved to make it more versatile and stronger.
3 pin holes have been added to give greater length flexibility and suitability for a short shanked tow bars.
This hitch has a 20mm x 75mm ball platform and is one of only a few ball mounts which is suitable for the Stone Stomper.
The hitch is fully reversible which gives you 12 mounting adjustments. High tensile grade 12.9 mounting hardware make this one of the strongest & most versatile hitches on the market.
- 3 pin holes to give lengths 261, 300 & 326mm
- 12 adjustable positions
- 5.75mm thick walled steel shank, Robotic welded for strength
- High tensile grade 12.9 bolts
- Seaguard matte black powder coat finish gives superior corrosion protection
- Complies to the testing requirements of ADR & Australian Standards where applicable
- Fits 50mm square (2″ square) towbar receivers
- Reversible – raises or lowers ball to the right level for towing
- Made tough for Australian conditions
Maximum trailer ATM : 2500Kg
Maximum ball weight: 250Kg
Shank hole diameter : 7/8″ (22mm)
Drop: 80-190mm(from top of 50mm shaft)
Rise: 50-160mm (from top of 50mm shaft)
Length: 261, 300 & 326mm (Measured from centre of receiver pin to centre of ball hole)
End of shank to first pin hole is 50mm (suits short shank receivers)
Note: Towing capacity of Tow Ball Mount may exceed towing capacity of towbar or vehicle, always refer to the towing capacity of towbar and vehicle.
