Axle 45mm Square SL Bearing Turned

$260.00$360.00

Axle Nut Kit 3/4" UNF Castellated 2pk

SKU: N/A
Share:

Description

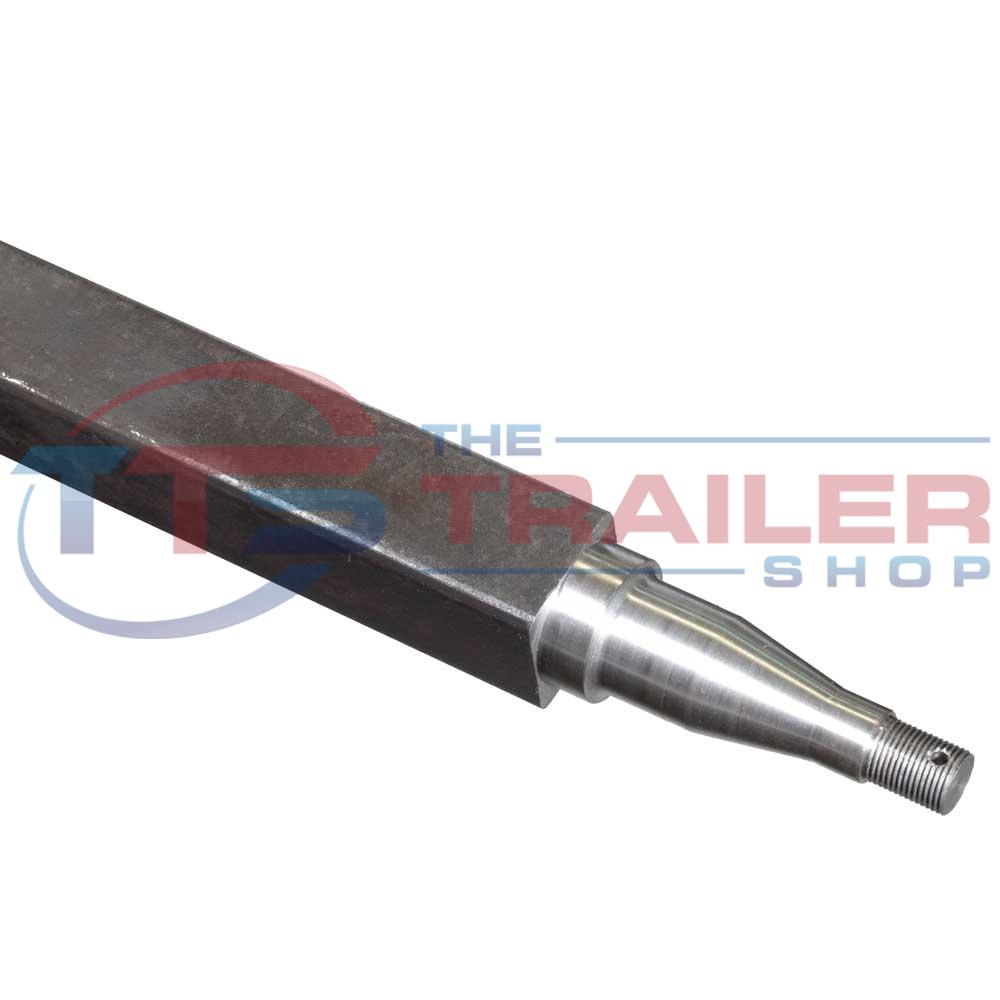

45mm solid square axle for SL (Ford) bearings are rated to a maximum of 1450Kg with 14″ wheels & 1200Kg with up to 16″ wheels.

This axle is designed for the following bearings.
Inner bearing, 1 x Set 13 bearing – 68149 cone & 68110 cup (68149/10)
Outer bearing, 1 x Set 12 bearing – 12749 cone & 12710 cup (12749/10)

Maximum capacity: 1450Kg
Maximum recommended tyre size: 16″ (1200Kg) / 14″ (1450Kg)

Axle length accuracy typically +/- 5mm

Most standard hubs to suit this axle have a tip of axle to face of hub conversion of 103mm (51.5mm/hub)

Additional information

Weight N/A
Dimensions N/A
Capacity

,

Coating

Size

45mm square

Length

55" (1400mm), 56" (1425mm), 57" (1450mm), 58" (1475mm), 59" (1500mm), 60" (1525mm), 61" (1550mm), 62" (1575mm), 63" (1600mm), 64" (1625mm), 65" (1650mm), 66" (1675mm), 67" (1700mm), 68" (1730mm), 69" (1755mm), 70" (1780mm), 71" (1805mm), 72" (1830mm), 73" (1855mm), 74" (1880mm), 75" (1905mm), 76" (1930mm), 77" (1955mm), 78" (1980mm), 79" (2005mm), 80" (2030mm), 81" (2055mm), 82" (2085mm), 83" (2110mm), 84" (2135mm), 85" (2160mm), 86" (2185mm), 87" (2210mm), 88" (2235mm), 89" (2260mm), 90" (2285mm), 91" (2310mm), 92" (2335mm), 93" (2360mm), 94" (2385mm), 95" (2415mm), 96" (2440mm)
