Description

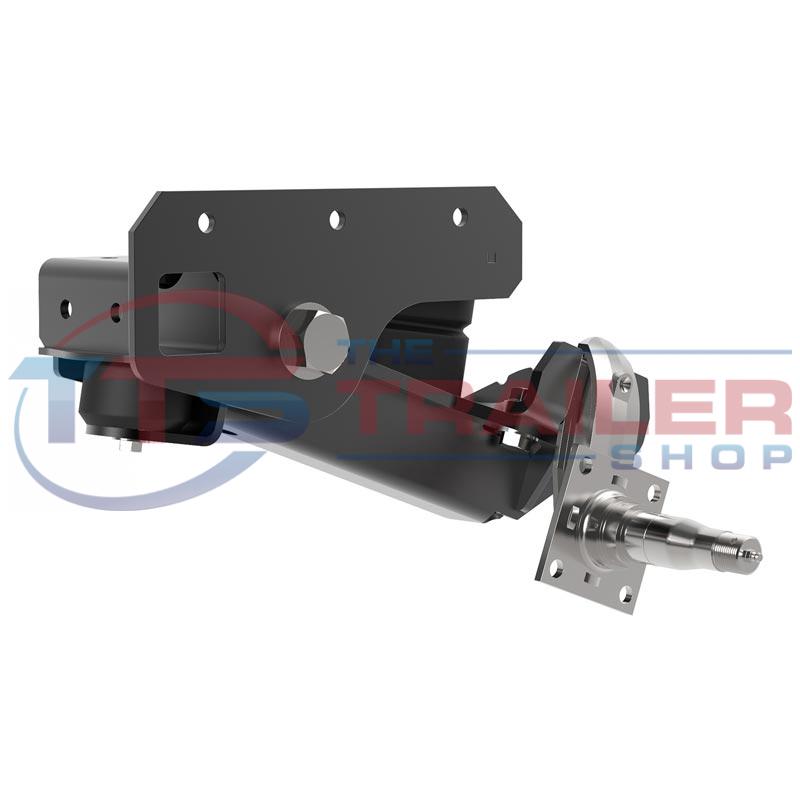

The 1450Kg series Axle-Less trailer suspension is not only durable but also provides a ride that’s so smooth you’ll forget you’re pulling a trailer. And because there’s no thru axle, you never need to worry about ordering the correct axle dimensions!
This 1450Kg Axle-less trailer suspension comes with outboard arms equipped with 4” lift and standard length slimline stub axles for use with standard-width tires 225/75R15 or smaller. A brake flange is included in case you plan on using brakes with your trailer suspension.
If you’re planning to take your trailer off-road and/or use tires bigger than 225/75R15, we recommend you choose the 1600Kg HD line of suspensions here.
The genius of the Axle-Less trailer suspension has more to do with what’s not there than what is:
- Less hassle! Experience fewer limitations by gaining more ground clearance.
- Less time! You can retrofit any light-duty trailer without waiting for an axle that fits.
- Less road shock! You will maintain the smoothest ride with or without a load.
- Less danger! An independent suspension gives you better control of your trailer.
The Axle-Less suspension gives you more creative freedom. Now you have more options to design and build your trailer.
Shims are also supplied giving you the option to adjust, if necessary, the suspension camber specific to your trailer frame.
Polyurethane bushings – used at the pivot point on the control arm – hold the pin firmly in place, resulting in better stability and a more controlled alignment with each moving component. They are weather-resistant and made to last longer, especially in a harsh environment.
Features:
- 4” lift outboard arms giving you the maximum ground clearance
- Standard slimline stub axles for use with standard-width tires 225/75R15 or smaller
- Brake flange included for optional brakes
- Smooth quiet ride empty & loaded
- Galvanised finish
- Easy bolt-on installation
- No thru axle
Specs:
- 1450Kg trailer suspension capacity
- Outboard arms with 4” lift and standard slimline stub axles for tires less than 225/75R15
What’s Included In The Box?:

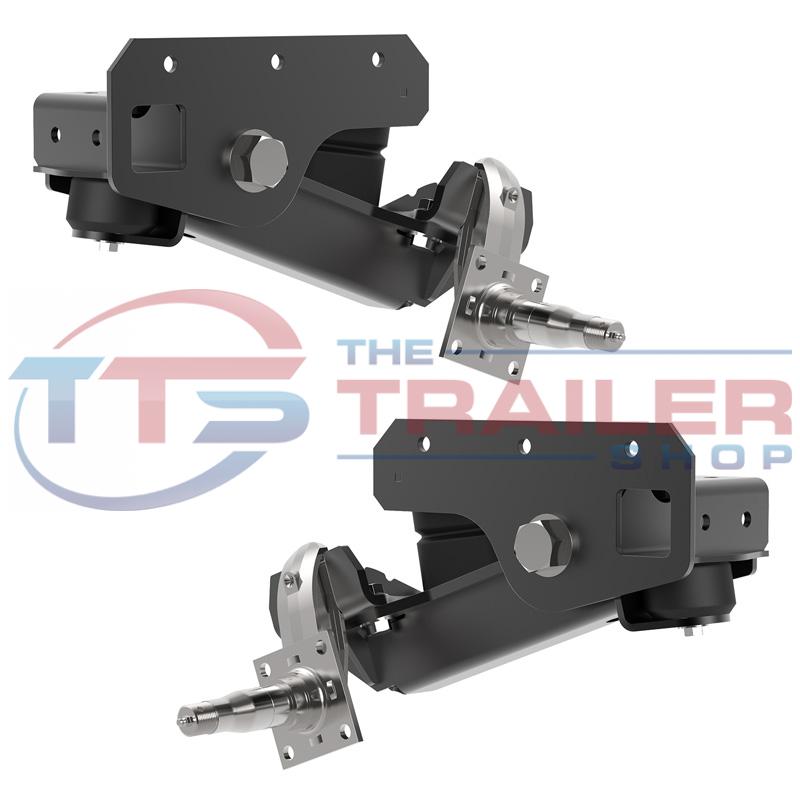

Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.
- 2x suspensions
- 2x 4″ lift outboard arms with slimline stub axles and brake flange
- Grade 8 Zinc Coated Hardware
- 8x Camber Shims
