Koyo SL (Slimline, Ford) Marine Bearing Kit

Description

Koyo SL (Slimline, Ford) marine bearing kit.

Marine trailer wheel bearings comprise of two parts, the cup which is pressed into the hub and the cone, this is the part that contains the rollers of the trailer wheel bearing. Trailer wheel bearings should always be replaced in a set, that is the cup and cone together.

In a bearing combination in a hub, the bearing on the inside of the hub flange (the side closest to the centre of the trailer) is called the inner bearing.

The bearing on the outside is called the outer bearing.

Slimline (Ford bearings) are rated for 1200Kg on a 45mm round axle or 1450Kg on a 45mm square axle.

Koyo bearings are a quality Japanese made bearing.

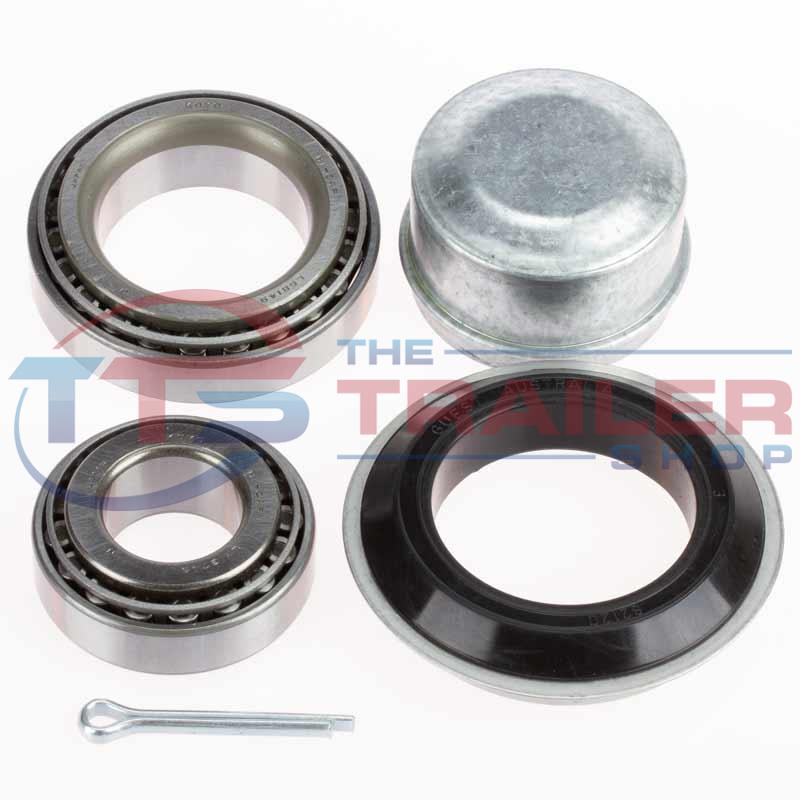

Koyo slimline marine bearing kit includes:

• 1 x Set 13 bearing – 68149 cone & 68110 cup (68149/10)
• 1 x Set 12 bearing – 12749 cone & 12710 cup (12749/10)
• 1 x Dust cap 45mm
• 1 x Marine seal 1.680″ x 2.328″ x 0.393″ (42.7 x 59.1 x 10mm)
• 1 x Split pin M4 x 32mm zinc
